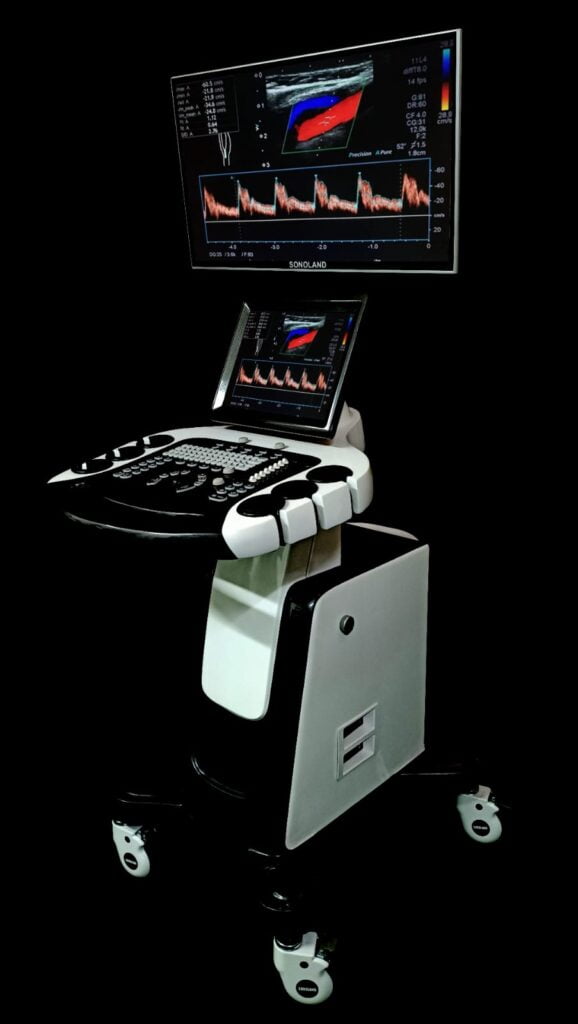

SONOLAND CARDIO DC-30 Dual Display

24” FHD Display & 12″ Display

SONOLAND CARDIO DC 30 Dual Display

4D COLOR DOPPLER TROLLEY BASED

24-inch FHD Borderless Crystal Medical Display

Secondary Display 12 inch Display

Applications:

Abdomen, OB/ GYN, Vascular, Small parts (breast, testes, thyroid), musculoskeletal conventional & Superficial, pediatric, Basic Cardiac. 4D Color Doppler (Optional).

Imaging Technologies:

I- image, SRA, compound imaging, THI

Display Modes:

B, B/B, 4B, M, B/M, PW

Gray Scale:

256 Levels

Scanning depth:

240 mm max (depending on the probe)

Probe frequency :

2.5 MHz- 11.0 MHz( Depend on the probe)

Cine Loop:

256 frames

Zoom:

4 steps

Software Packages for SONOLAND CARDIO DC-30:

Dedicated measurement package: General, OB/GYN, URO, Cardiac, vascular, small parts.

Archives Management:

Patient information management, image records, & exam reports.

Documentation:

Full-screen documentation, Hospital Name,

Patient Name, Date/ time OB growth curve.

Standard Configuration for SONOLAND CARDIO DC-30:

Main unit, 2.5MHz convex probe C3-A, 2 Probe Connectors, 3 USB ports, VGA PORT, Video port, LAN port, Full Screen Display Mode, i-image, Chroma, SRA, Compound imaging, THI, 8G memory, PW Mode, Built-in Battery (BT-2500) (Optional)

Option:

DICOM 3.0, Waterproof keyboard cover, Carry Case (BG-100), Cart TR-9000, Support PC Printer (HP, EPSON & etc), Video Printer(Sony UPD 711MD)
